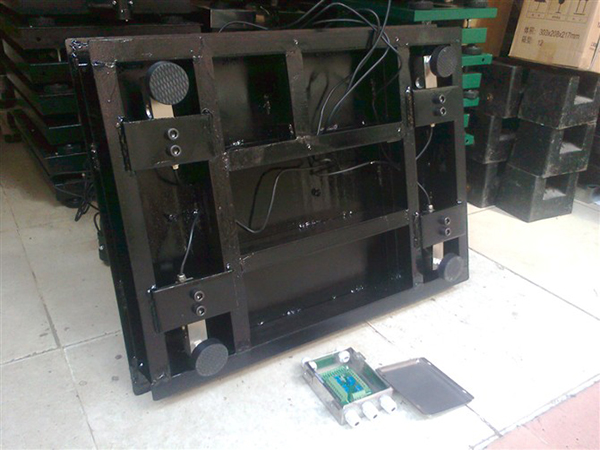

Application Platform Scales, Floor Scales, Blending Scales
Rated Load 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 5, 7.5, 10t
Sensitivity 3±0.003mV/V (0.5-10t ), 2.0±0.002mV/V(0.25-0.3t)
Accuracy Class C2-C5
Zero balance ±1%F.S ±0.02%F.S/10C
TCO ±0.02%F.S/10C
TC SPAN ±0.02%F.S/10C
Input resistance 400±10OHM
Output resistance 352±3OHM

Insulation resistance ≥5000MOHM
Temperature Range. Compensated -10 to +40C
Operating Temp Range -30 to +70C

Safe load limit 120%F.S
Over load limit 180%F.S

Recommend excitation 10 to 12V DC
Maximum excitation 15V DC
Protection Class IP67(0.25-0.75t) IP68 (1-10t)
Construction Alloy Steel/Stainless Steel

Cable: Length; 3m(0.25-2.5t),4.2m (3-5t), 5m(7.5-10t)
