Description:

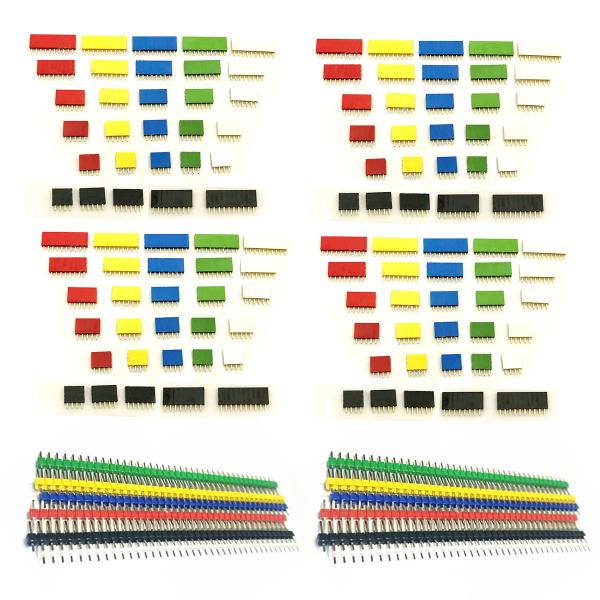

Pin header strip 30pcs and colored male socket 120pcs

Pin header strip is breakable, can be easily cut to separate groups or individual pins
The pin type is square
Single row male straight type

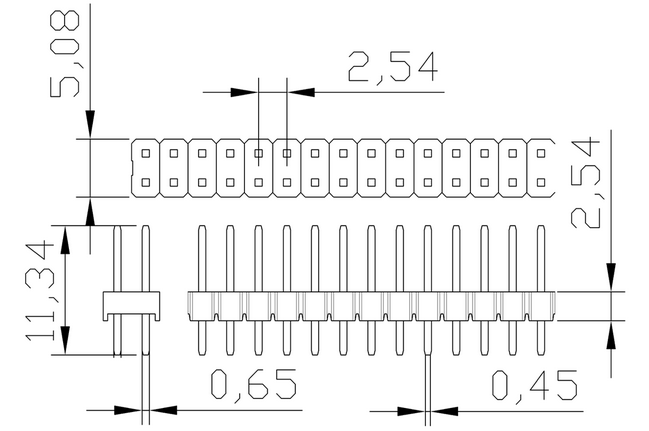

Pitch: Approx. 1 inch / 2.54 mm

The total length of pin:11.5mm, common type
Size (L x W): Approx. 4 x 0.4 inch / 10 x 1 cm
Color: Yellow, Blue, White, Green,Red, Black

Iron Contacts: nickel plated over iron ( low cost )
Brass contacts options: Gold over nickel Tin / Gold Flash 0.8µ''
Temperature: 0 - 85 degrees
Contact Resistance: 20ohm (initial)
Insulation Esistance: 1,000ohm
Dielectric strength: AC1000V

Package: 150 pcs / pack
